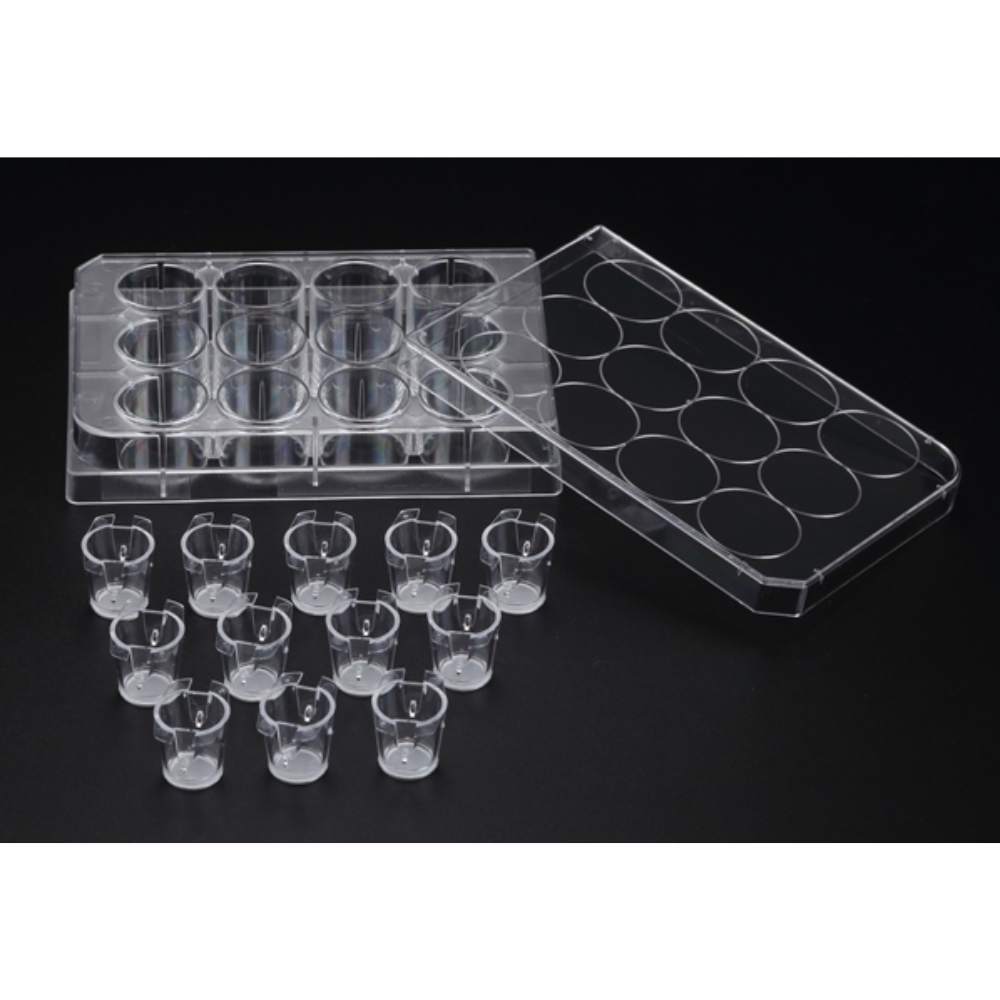

SPLInsert™ Hanging

SPLInsert™ Hanging

Add to wishlist
Compare

▪ Distance from membrane to the bottom of the well: 6well Insert 1.2 mm, 12well Insert 1.2 mm, 24well Insert 1.3 mm
▪ Nominal membrane thickness: 10 ~ 23 μm
▪ Frame material: 35xxx/36xxxx(PS), 37xxx(PET)
▪ Packed in cell culture-treated cell culture plates (except Insert Only)
▪ Insert Only: available individually

Add to wishlist
Compare

SPLInsert™ products closely mimic in vivo environment, providing improved attachment, growth and differentiation of various cell types. With their permeable property, inserts are convenient and effective tool for diverse studies research areas such as transportation and invasion. Specially selected track-etched membranes of three different pore sizes (0.4, 3.0 and 8.0 μm) are used for SPLInsert™ products. Track-etched membranes ensure precise pore size distribution and consistent pore density, providing well-controlled experimental parameters.

Polycarbonate (PC): stain-free, low background interference
Polyethylene terephthalate (PET): high chemical resistance and low protein binding property

Applicable experiments: invasion, migration, transportation, drug uptake, epithelial polarization, chemotaxis, co-culture, toxicity study and in vivo barrier modeling

▪ Distance from membrane to the bottom of the well: 6well Insert 1.2 mm, 12well Insert 1.2 mm, 24well Insert 1.3 mm
▪ Nominal membrane thickness: 10 ~ 23 μm
▪ Frame material: 35xxx/36xxxx(PS), 37xxx(PET)
▪ Packed in cell culture-treated cell culture plates (except Insert Only)
▪ Insert Only: available individually

▪ Non – pyrogenic
▪ Non – cytotoxic
▪ DNase / RNase – free
▪ Human DNA – free

Category:
Cat. No. Type Membrane
Material		 Membrane
Pore Size
(μm)		 Membrane
Diameter
(mm)		 Growth Area
(cm²)		 Working Volume
(ml)		 Optical Properties Sterile Packaging
35006 6 Inserts / 6well Plate PC 0.40 24.00 4.52 1.50 ~ 2.50 Opaque + 6 Inserts / Plate
4 Plates / Box
35106 6 Inserts / 6well Plate PC 3.00 24.00 4.52 1.50 ~ 2.50 Translucent + 6 Inserts / Plate
4 Plates / Box
35206 6 Inserts / 6well Plate PC 8.00 24.00 4.52 1.50 ~ 2.50 Translucent + 6 Inserts / Plate
4 Plates / Box
35012 12 Inserts / 12well Plate PC 0.40 10.50 0.90 0.40 ~ 1.00 Opaque + 12 Inserts/Plate
4 Plates/Box
35112 12 Inserts / 12well Plate PC 3.00 10.50 0.90 0.40 ~ 1.00 Translucent + 12 Inserts/Plate
4 Plates/Box
35212 12 Inserts / 12well Plate PC 8.00 10.50 0.90 0.40 ~ 1.00 Translucent + 12 Inserts/Plate
4 Plates/Box
35024 12 Inserts / 24well Plate PC 0.40 6.50 0.33 0.20 ~ 0.35 Opaque + 12 Inserts/Plate
4 Plates/Box
35124 12 Inserts / 24well Plate PC 3.00 6.50 0.33 0.20 ~ 0.35 Translucent + 12 Inserts/Plate
4 Plates/Box
35224 12 Inserts / 24well plate PC 8.00 6.50 0.33 0.20 ~ 0.35 Translucent + 12 Inserts/Plate
4 Plates/Box
36006 6 Inserts / 6well Plate PET 0.40 24.00 4.52 1.50 ~ 2.50 Opaque + 6 Inserts / Plate
4 Plates / Box
36106 6 Inserts / 6well Plate PET 3.00 24.00 4.52 1.50 ~ 2.50 Translucent + 6 Inserts / Plate
4 Plates / Box
36206 6 Inserts / 6well Plate PET 8.00 24.00 4.52 1.50 ~ 2.50 Translucent + 6 Inserts / Plate
4 Plates / Box
36012 12 Inserts / 12well Plate PET 0.40 10.50 0.90 0.40 ~ 1.00 Opaque + 12 Inserts/Plate
4 Plates/Box
36112 12 Inserts / 12well Plate PET 3.00 10.50 0.90 0.40 ~ 1.00 Translucent + 12 Inserts/Plate
4 Plates/Box
36212 12 Inserts / 12well Plate PET 8.00 10.50 0.90 0.40 ~ 1.00 Translucent + 12 Inserts/Plate
4 Plates/Box
36024 12 Inserts / 24well Plate PET 0.40 6.50 0.33 0.20 ~ 0.35 Opaque + 12 Inserts/Plate
4 Plates/Box
36124 12 Inserts / 24well Plate PET 3.00 6.50 0.33 0.20 ~ 0.35 Translucent + 12 Inserts/Plate
4 Plates/Box
36224 12 Inserts / 24well Plate PET 8.00 6.50 0.33 0.20 ~ 0.35 Translucent + 12 Inserts/Plate
4 Plates/Box
37006 6 Inserts / 6well Plate PET 0.40 24.00 4.52 1.50 ~ 2.50 Transparent + 6 Inserts / Plate
4 Plates / Box
37106 6 Inserts / 6well Plate PET 3.00 24.00 4.52 1.50 ~ 2.50 Transparent + 6 Inserts / Plate
4 Plates / Box
37206 6 Inserts / 6well Plate PET 8.00 24.00 4.52 1.50 ~ 2.50 Transparent + 6 Inserts / Plate
4 Plates / Box
37012 12 Inserts / 12well Plate PET 0.40 10.50 0.90 0.40 ~ 1.00 Transparent + 12 Inserts/Plate
4 Plates/Box
37112 12 Inserts / 12well Plate PET 3.00 10.50 0.90 0.40 ~ 1.00 Transparent + 12 Inserts/Plate
4 Plates/Box
37212 12 Inserts / 12well Plate PET 8.00 10.50 0.90 0.40 ~ 1.00 Transparent + 12 Inserts/Plate
4 Plates/Box
37024 12 Inserts / 24well Plate PET 0.40 6.50 0.33 0.20 ~ 0.35 Transparent + 12 Inserts/Plate
4 Plates/Box
37124 12 Inserts / 24well Plate PET 3.00 6.50 0.33 0.20 ~ 0.35 Transparent + 12 Inserts/Plate
4 Plates/Box
37224 12 Inserts / 24well Plate PET 8.00 6.50 0.33 0.20 ~ 0.35 Transparent + 12 Inserts/Plate
4 Plates/Box
Insert Only
35624 For 24well Plate PC 0.40 6.50 0.33 0.20 ~ 0.35 Opaque + 6 / 48
35724 For 24well Plate PC 3.00 6.50 0.33 0.20 ~ 0.35 Translucent + 6 / 48
35824 For 24well Plate PC 8.00 6.50 0.33 0.20 ~ 0.35 Translucent + 6 / 48
36624 For 24well Plate PET 0.40 6.50 0.33 0.20 ~ 0.35 Opaque + 6 / 48
36724 For 24well Plate PET 3.00 6.50 0.33 0.20 ~ 0.35 Translucent + 6 / 48
36824 For 24well Plate PET 8.00 6.50 0.33 0.20 ~ 0.35 Translucent + 6 / 48
37624 For 24well Plate PET 0.40 6.50 0.33 0.20 ~ 0.35 Transparent + 6 / 48
37724 For 24well Plate PET 3.00 6.50 0.33 0.20 ~ 0.35 Transparent + 6 / 48
37824 For 24well Plate PET 8.00 6.50 0.33 0.20 ~ 0.35 Transparent + 6 / 48
