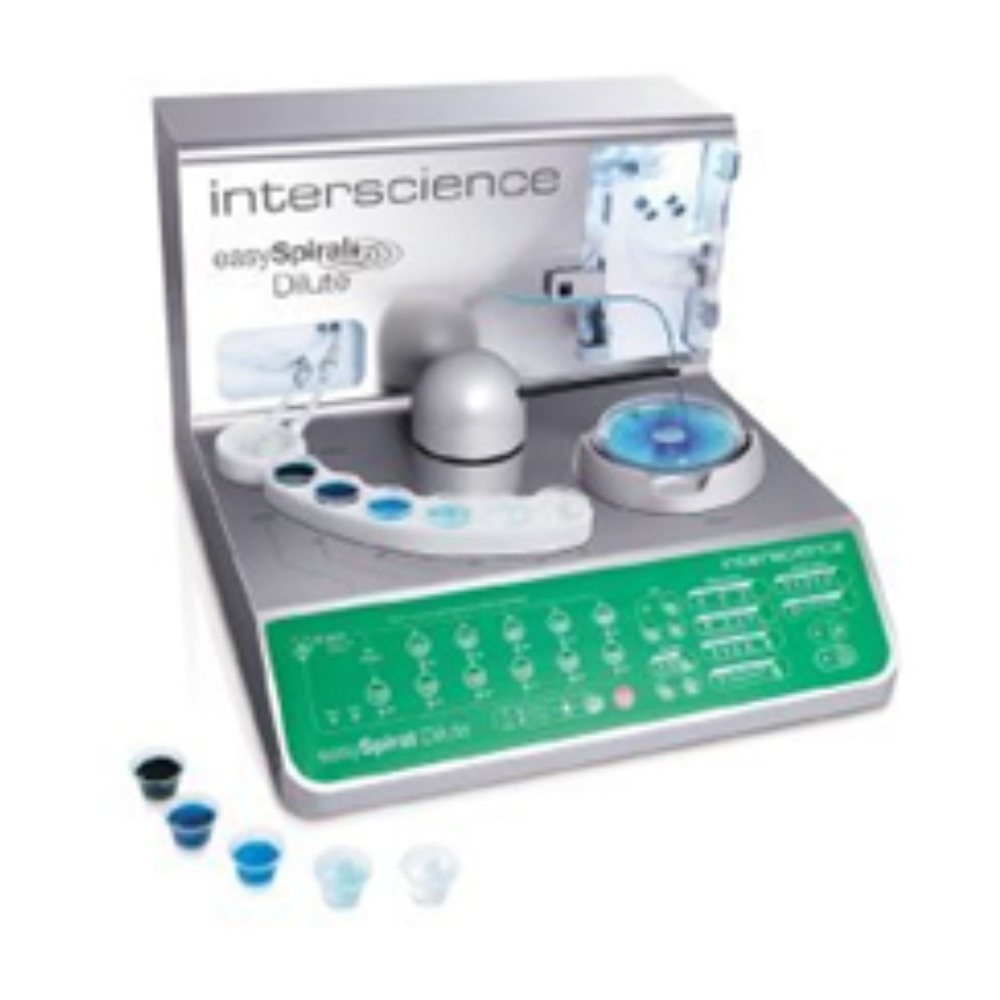

easySpiral Dilute is an automatic diluter and plater of Petri dishes. It allows 1/10th serial dilutions and plating up to 6 logs. dilution on 1 single Petri dish. For a sample of 30 to 1 x 1012 bacteria, no more manual dilutions and plating is automatic.
• Automatic cycle of 5 successive dilutions at 1/10th
• Plating modes: exponential, constant, circle, pour plate
• Counting range: from 30 to 1×1012 CFU/mL
• Plating cycle time: 134 seconds
Instrument and Equipment's
Compare
easySpiral Dilute (Ref No. 414 000)
- Automatic cycle of 5 successive dilutions at 1/10th
- Plating modes: exponential, constant, circle, pour plate
- Counting range: from 30 to 1×1012 CFU/mL
- Plating cycle time: 134 seconds
All stainless steel
• Controlled by microprocessor
• Fast rotating arm (Patented)
• Multi-use, autoclavable stylus
• Plating modes: exponential, constant, circle, pour plate
• Petri dish diameter: 55 mm, 90 mm and 150 mm
• Can adapt to all sizes of Petri dishes with adjustable plating dish (Ref 413 019 and Ref 413 020)
• Filling time (for different sample viscosities) and volume programmable by USB
• 3 test keys for checking dilutions’ volumes and platings (volumetric weighing)
• Disinfection process
• Sample mixing before dilution/plating
• Counting range: from 30 to 1×1012 CFU/mL
• Preset dispensed volumes: 50, 100 and 200 µL
• Volumes accuracy: ± 0.5% (in normal mode)
• Programmable dispensed volume (via USB) from 10 to 1000 µL
• Syringe capacity: 1 000 µL
• Plating cycles time:
1 disinfection + 5 dilutions + 1 sample intake + 1 plating of a dilution: 134 s
• Automatic cycle of 5 successive dilutions at 1/10th
• Exponential mode: 4 dilution logs on a Ø 90 mm Petri dish / 6 dilution logs on a Ø 140/150 mm Petri dish
• Circle mode: 3 dilutions on a 90 mm Petri dish / 6 dilutions on a 150 mm Petri dish
• Successive plating capacity with the same sample: up to 20 Petri dishes (50 µL)
• Sample intake in Eppendorf 1.5 mL beaker
• Approved diluents: saline water, Ringer solution
• Autonomy in diluents: 63 cycles (2L bottle)
• Cleaning and disinfection of the stylus by overflow technology. Pression: up to 8 bars (patented)
• Approved disinfectants: bleach 1 % active chlorine or ethanol at 70 % or a solution of hydrogen peroxide H2O2 (1 to
5 %) and peracetic acid PAA (0.05 to 1 %)
• Security detection in case of absence of disinfection liquid
• Autonomy in disinfection (in normal mode): 1000 cycles (2L bottles)
• Availability of spare parts: 10 years
• In compliance with ISO 7218, ISO 4833-2, FDA BAM (Bacteriological Analytical Manual), AOAC 977.27
• Manufactured under CE, UKCA, RoHS, WEEE
• Designed and made in France
