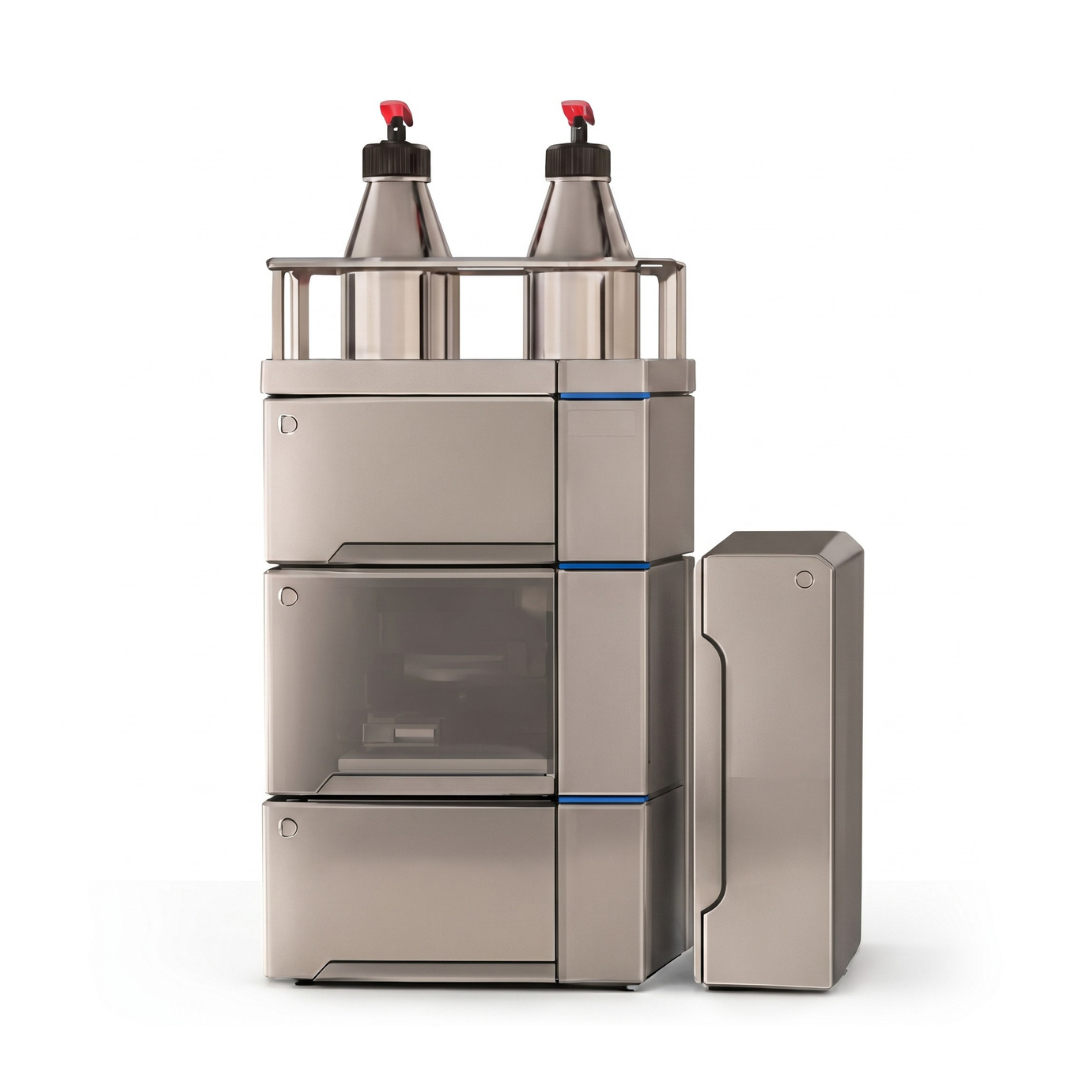

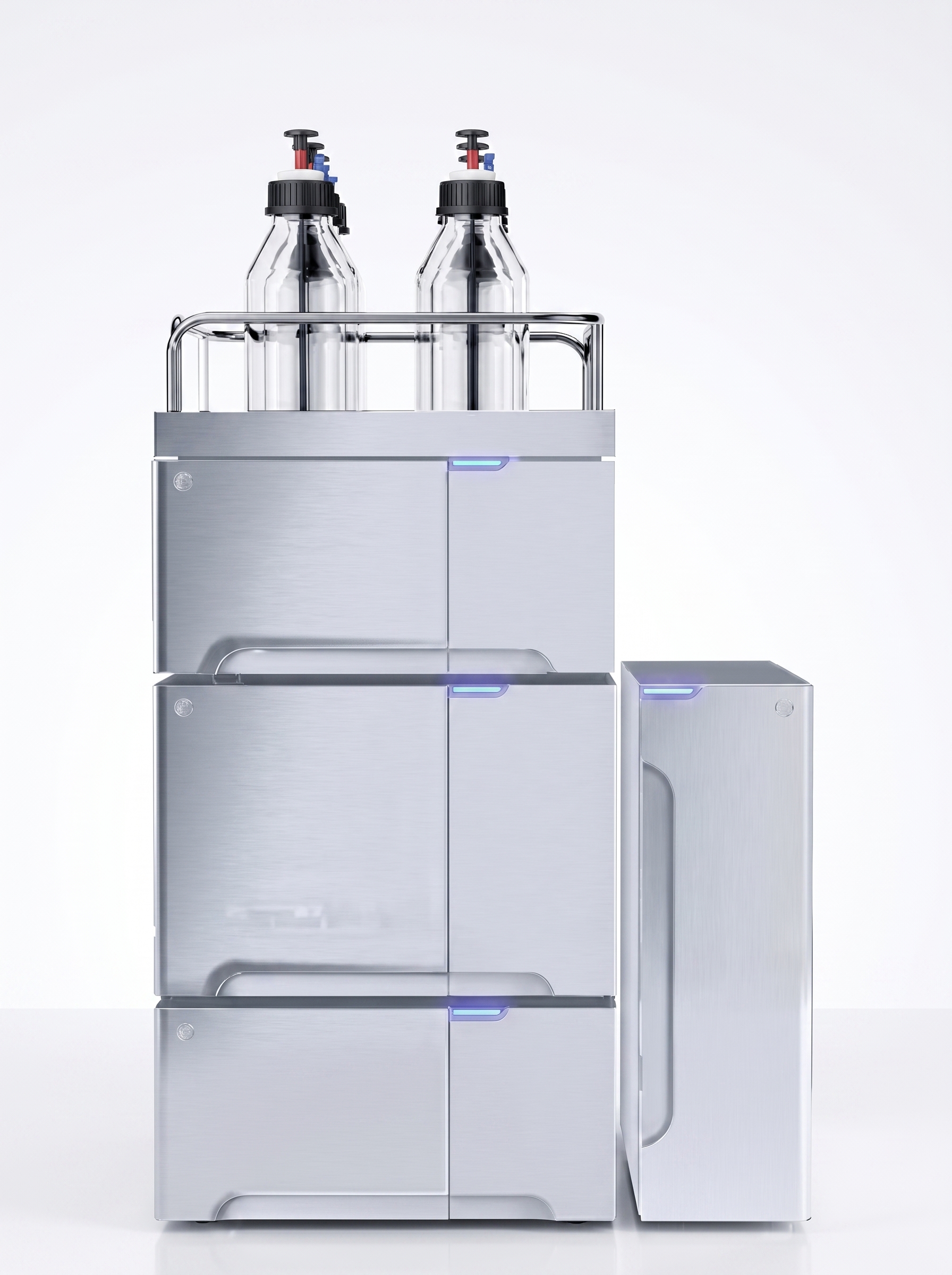

The ChromGen Plus UHPLC is an Ultra-High Performance Liquid Chromatography System built to deliver an unparalleled analytical efficiency experience. The system features ultra-stability and a lower flow rate to enable small proportions to operate stably, accurately, and durably, making it an excellent choice for ultra-high performance analysis across diverse laboratory applications.
System Features & Performance
Ultra-High Performance UHPLC Core
-
High Pressure Resistance: Ultra-high pressure resistance up to 16000 PSI (1100 Bar) brings ultra-high separation efficiency.
-
Enhanced Sensitivity: Ultra-low dispersion total reflection flow cell significantly reduces the extra-column volume, improves sensitivity, and fully satisfies ultra-high performance analysis.
-
Low Flow Optimization: Ultra-stability and lower flow rate enable small proportions to operate stably, accurately, and durably.
Pressure Delivery Beyond Conventional
-
Pulsation Suppression: Features pressure pulsation suppression technology requiring no damper, maintaining pressure pulsation at <10 PSI.
-
Solvent Mixing: Supports multiple solvent mixing modes.
Efficient Sample Delivery and Analysis
-
Injection Repeatability: Ultra-high injection repeatability with a variety of injection modes to ensure accurate and reliable quantitative results.
-
Flexible Tray Options: Offers flexible sample tray options (2*54 or 2*96 well plates) and optional sample chamber refrigeration.
-
Reduced Residue: Inner and outer needles comprehensively reduce sample residue to <0.0025%.
-
User-Friendly Setup: Running across sequences, the graphical sample tray selection interface makes sample injection easier to set up and analyze.
Accurate and Fast Temperature Control System
-
Large Capacity Oven: Large-capacity column oven which can accommodate four 300mm long chromatographic columns.
-
Uniform Temperature Field: Forced air circulation design maintains temperature at $\pm0.1^{\circ}C,$ making the temperature field more uniform.
-
Regulatory Compliance: Recording of column usage information to ensure compliance with regulatory guidelines.
