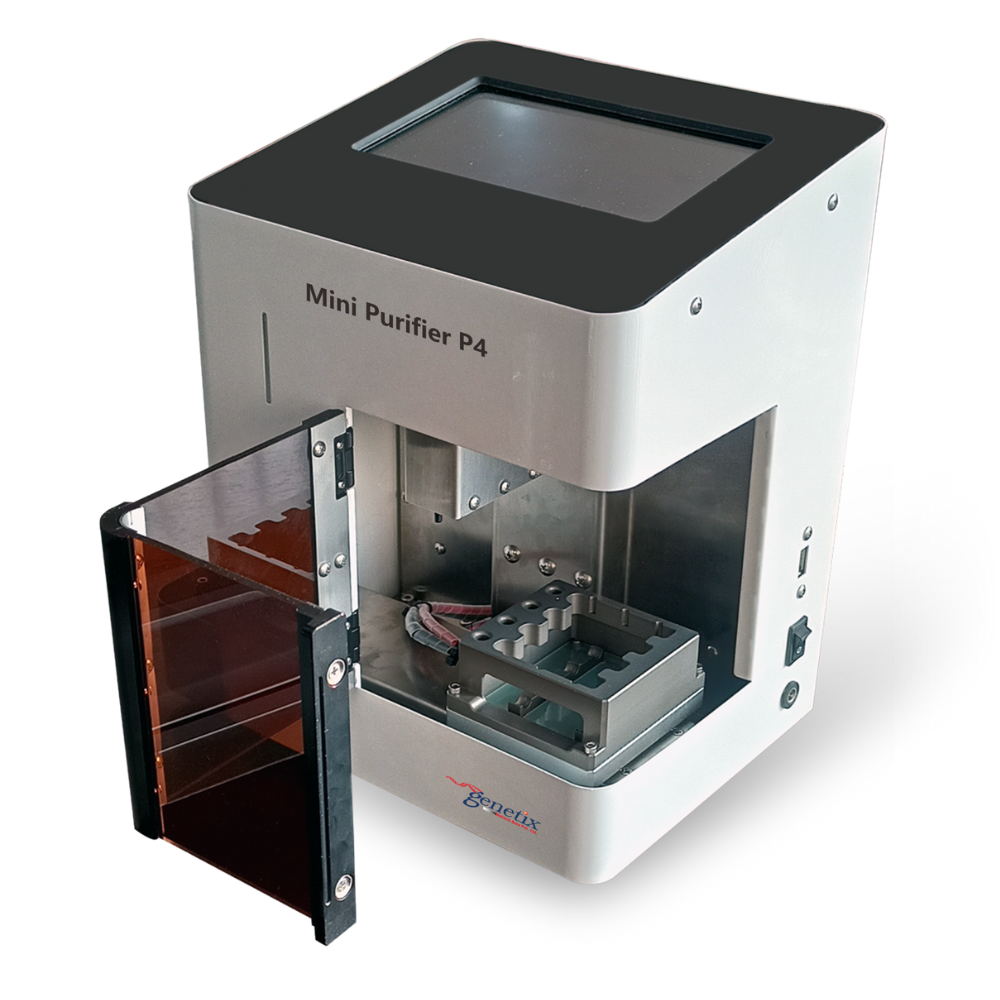

Mini Purifier P4 Automated nucleic acid (DNA/RNA) extraction machine

1. The magnetic beads with unique separation system can rapidly extract high purity DNA/RNA from biological /clinical samples with high sensitivity and efficiency.
2. The extracted and purified nucleic acid can be used for enzyme digestion, reverse transcription (cDNA Synthesis),PCR, RT-PCR, Southern blot, and other common molecular experiments.
3. Scope of application: Pharynx swab, nasal swab, nasopharyngeal secretion, whole blood, serum, plasma, body fluid, cell culture supernatant, cervical exfoliated cells, etc.
4. The Nucleic acid recovery rate is ≥95%.
5. Detection rate of 50-100 copies/ml (Minimum 10 copies/ml in-case of Viral sample)
6. Transportation and preservation at room temperature.

Compare

Automated
One-click start of the nucleic acid purification program.
Magnetic-rod with highly efficient magnetic suction.
POCT
Small foot print with compact design.
Suitable for preparing samples for research, human disease screening & pet
Can perform nucleic acid extraction anytime, anywhere.
Suitable for all kind of healthcare facilities.
Contained System
Extraction process is carried out in a closed environment and disinfected by ultraviolet lamp to avoid contamination & pathogen spread. Can be placed in a Laminar Flow /h Biosafety Cabinet.

Mini Purifier P4- Brochure

Category: Instrument and Equipment's

Cat. Number	GXHT101-4 (GENETIX Mini Purifier P4 Magnetic Particle Separator, 100-240V, 50/60Hz)
Sample Type	Whole Blood, Serum, Plasma, Throat Swab, Sputum, Plant/Animal Tissue, FFPE, cf-DNA etc.
Extraction of Samples per run	1-4 samples
Sample Volume	50µL-500µL
Elution Volume	upto 100 µL
CV	≤3%
Processing time	8-13 minutes depends on type of samples
Sensitivity	Detection rate of 50-100 copies/ml positive samples is ≥95% (Minimum 10 copies/ml Viral sample)
Operation Interface	7″ LCD touch screen
Disinfection Sterilization	Ultraviolet sterilization
Weight (Kg)	8.5
Dimension (mm)	230(W) x 190(D) x 290(H)
Power	100V-240V ≤70W
